Description

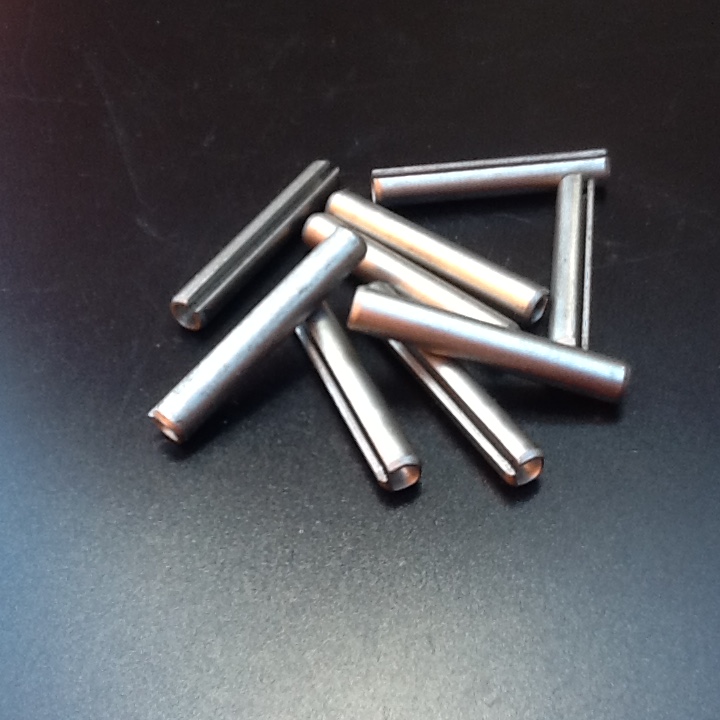

Slotted Spring Pins 6.5mm X 40mm

Slotted Spring Pins 6.5mm X 40mm

Code:1355004

Only £2.85 pack of two

These Slotted Spring Pins 6.5mm X 40mm have a longitudinal slot down the shaft length for flexibility during installation. They are used in light-load applications.
Alloy steel is the strongest of all steel types. It has high tensile strength and offers excellent resistance to wear, fatigue and galling.

All spring pins have the common characteristic of a pin diameter larger than the hole diameter into which the pin is installed. Spring pins are cylindrical pins rolled from a strip of material, some have rounded ends for easier installation others are rounded at only one end. Slotted Spring pins are also known as roll pins or “C” pins.

These Slotted Spring Pins 6.5mm X 40mm consist of a single coil of spring steel or stainless steel with an open slot sufficiently wide to enable the pin to reduce in diameter as it is driven into a hole of appropriate size. The ends of the pin have a bevelled chamfer. They are designed for plain drilled holes but a countersink makes assembly easier, especially for the heavy duty type of pin.

I have a large stock of Spring pins, roll pins and grooved dowel pins (mills pins) in many different sizes both metric and imperial if you do not see the size your looking for please contact me as I may be able to help you. info@britishpipeclamps.co.uk

ALL ORDERS ARE DISPATCHED WITHIN ONE WORKING DAY FREE POST UK

I have listed theses pins in small quantities as most of us do not need hundreds of Spring pins at one time, however if you need more than the listed quantity you can adjust the quantity box.

returns are excepted, if you find that you are not completely satisfied with your order, I will except returns and a full refund will be given,
