Description

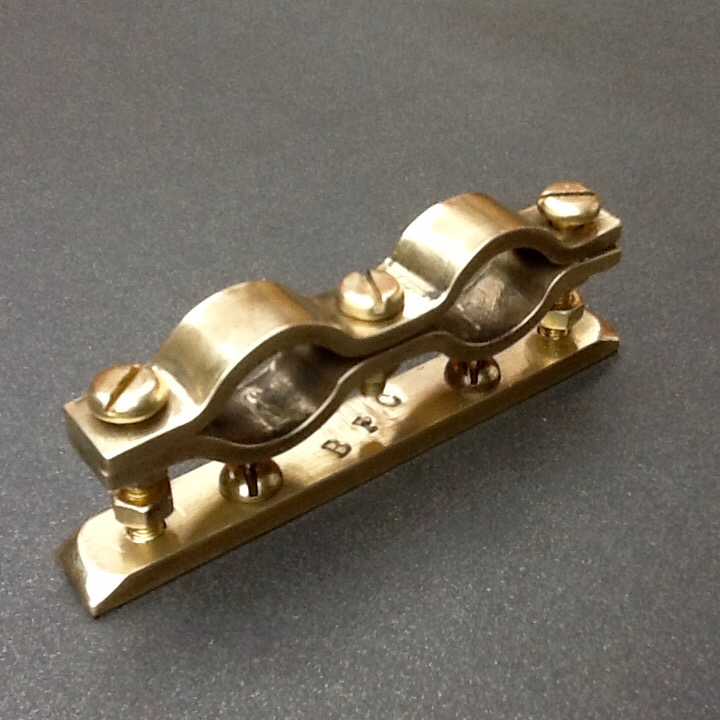

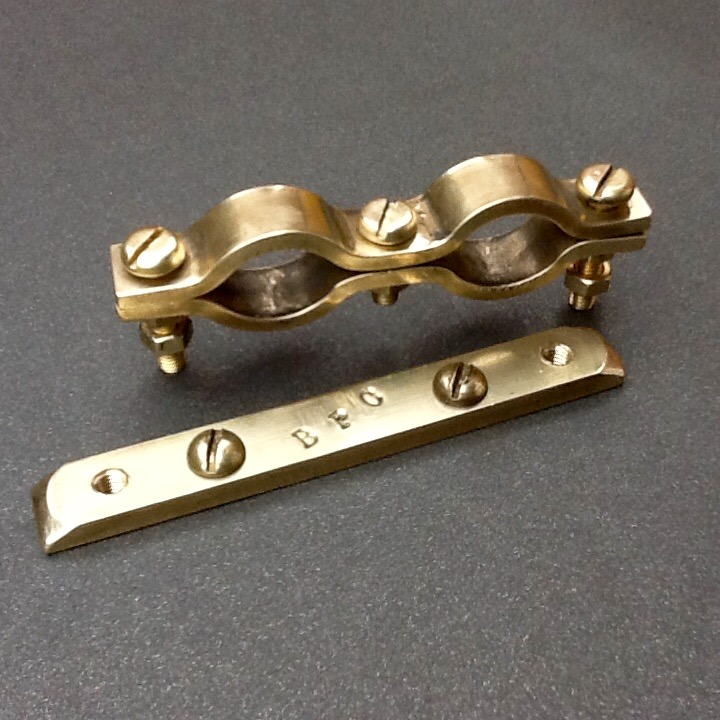

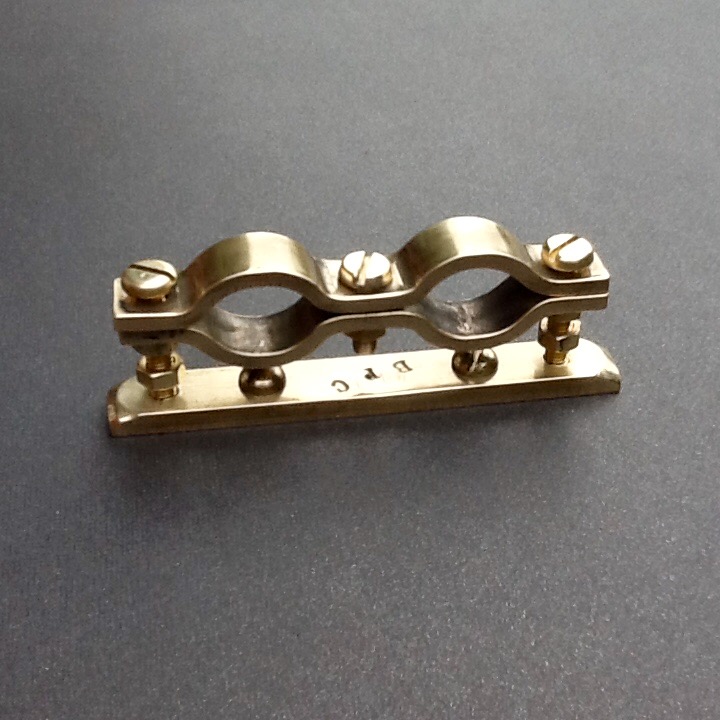

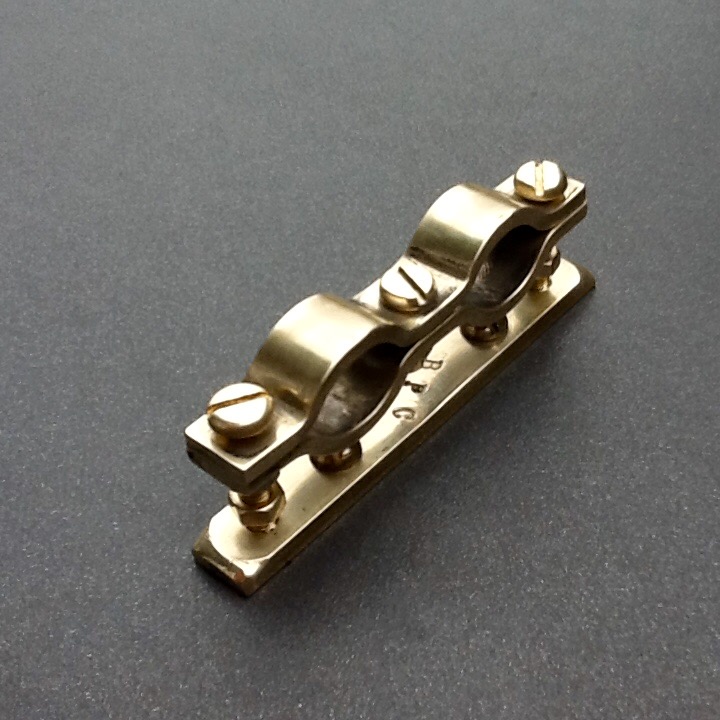

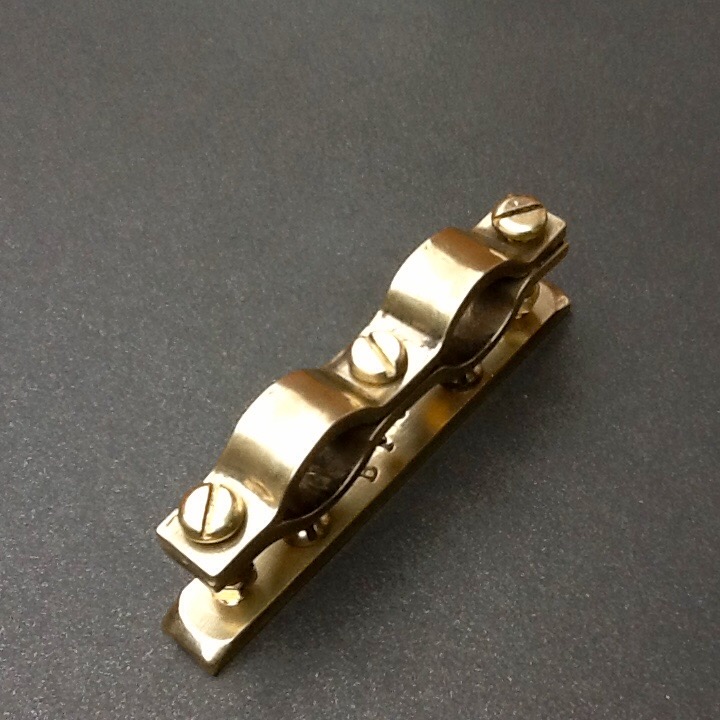

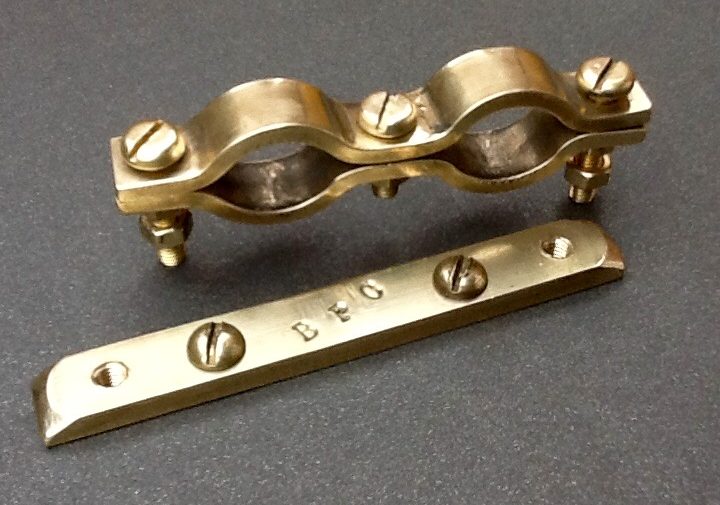

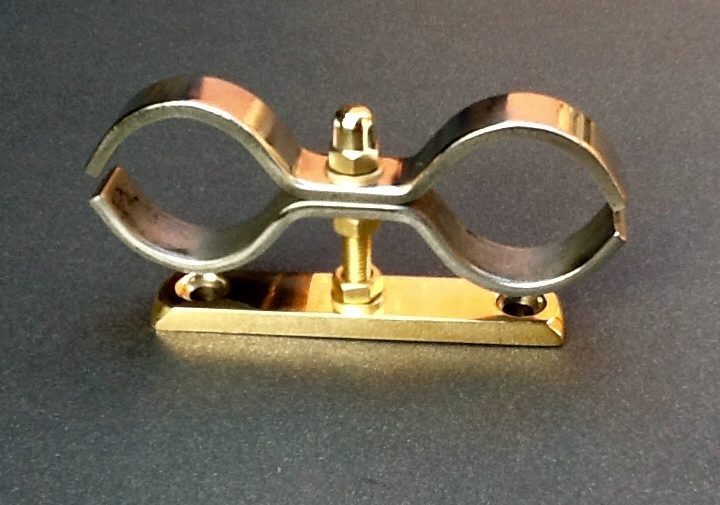

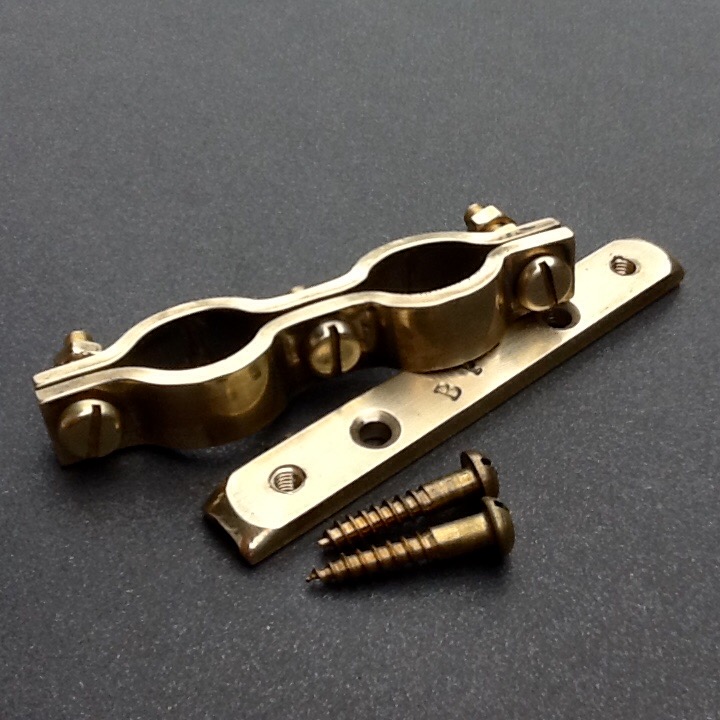

Brass Pipe Clamp Bracket Wall Mount 15mm Adjustable Double Ports

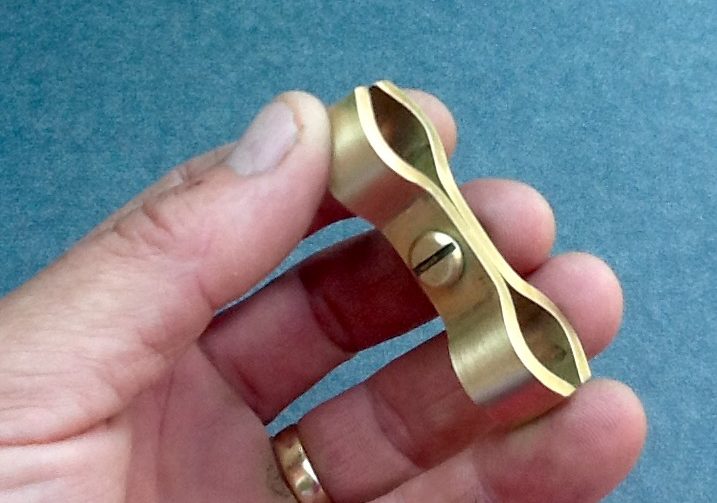

Brass pipe clamp bracket wall mount 15mm adjustable double ports. Manufactured by BPC Engineering Warwickshire. These beautiful handmade pipe clamping Brackets will add that finishing touch to your kitchen living room or bathroom. Made from solid brass each one is formed using our old 1907 Taylor & Challen hand press, no two are the same, each one is slightly different from the other giving that unique age old look about them.
We can adjust the distance of these brackets to fit your pipes contact us
Adjustment & Information

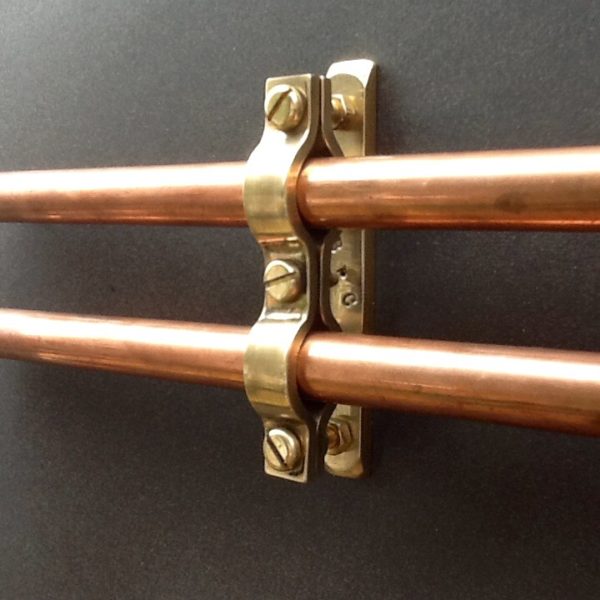

This double port pipe clamp will space the two pipes at 25mm (1″) clear space apart when installed. The distance from the wall to the pipes can be governed with the adjustment screws.

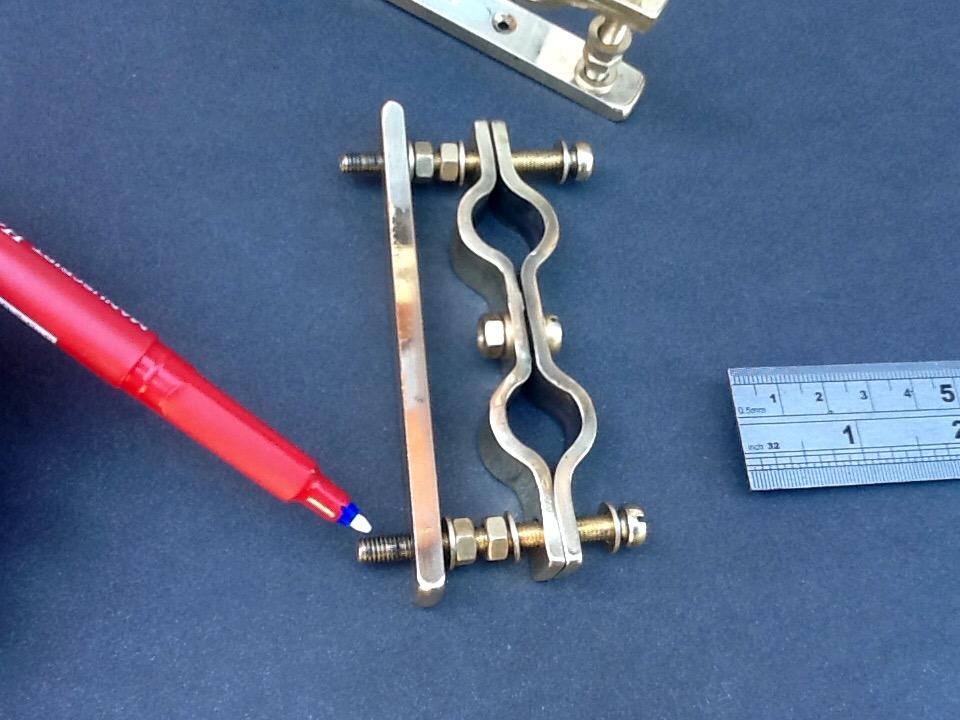

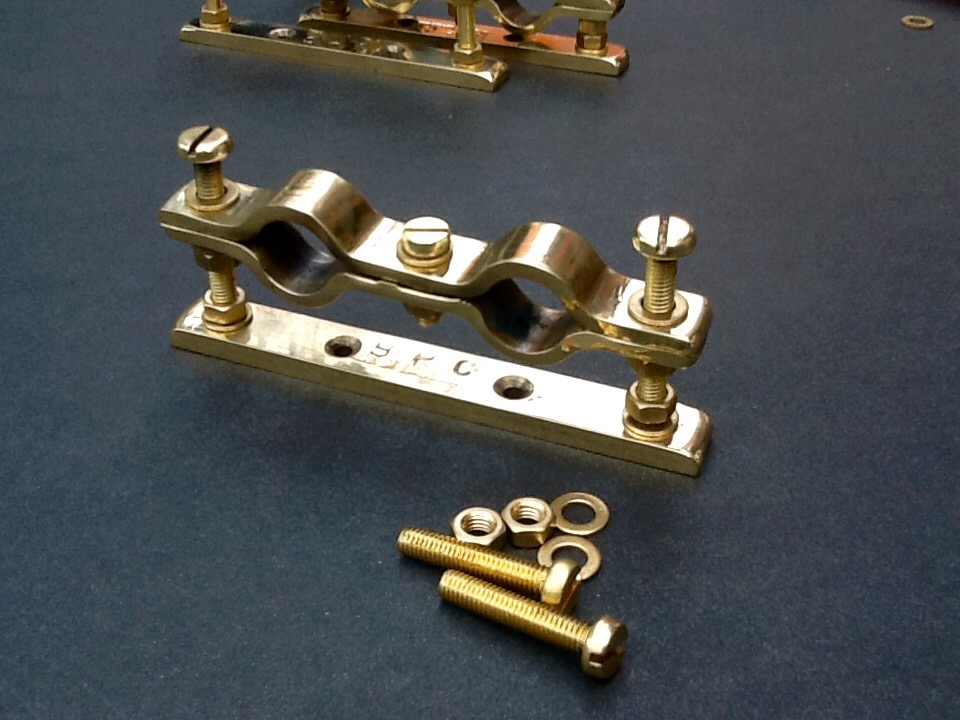

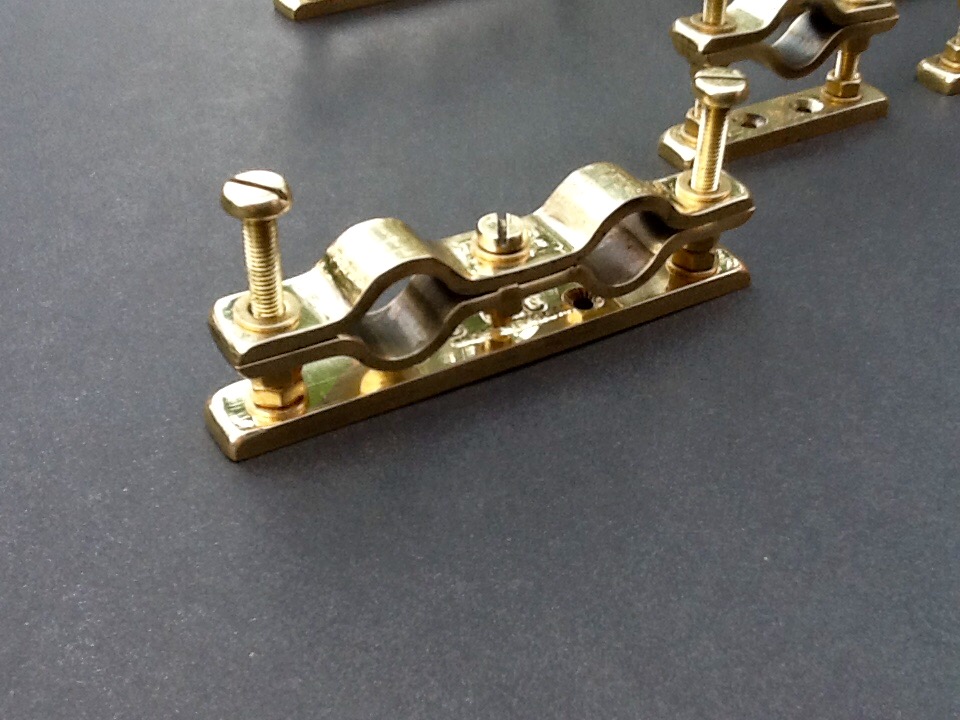

You can screw the screws all the way through the backing plate. This will allow you to set the desired distance you want the pipes positioned from the wall. The excess screw thread can then be removed using a small hacksaw.

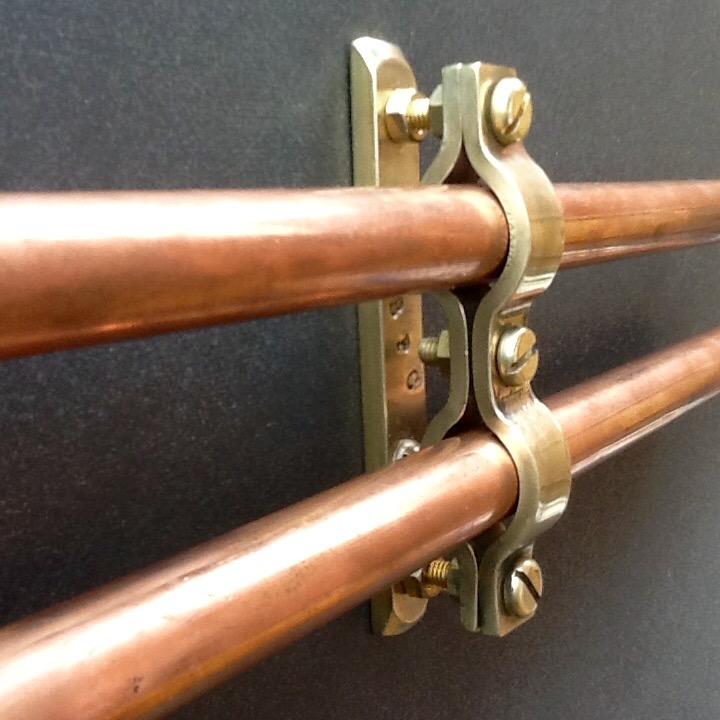

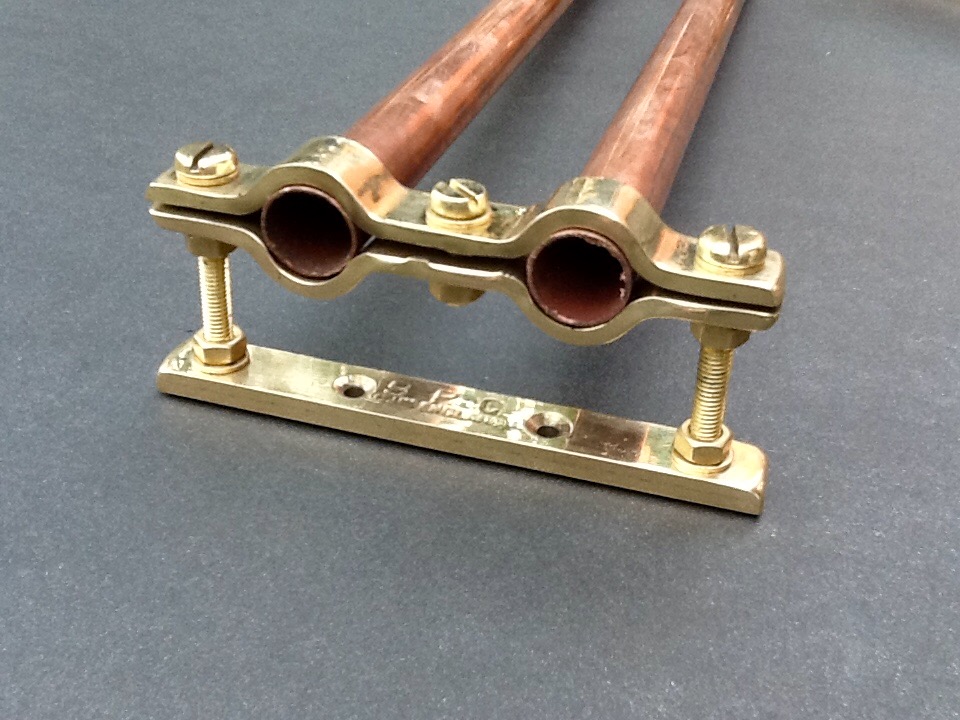

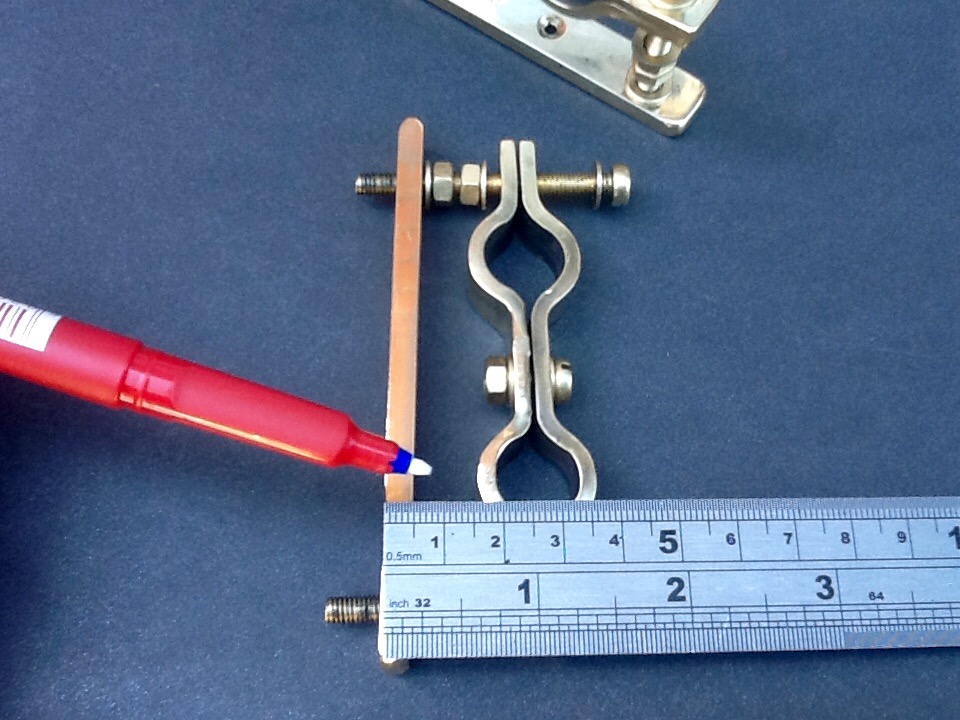

Set the distance of the pipes from the wall
The distance can be set by using the two screws and locking nuts. Be sure to tighten the locking nuts before removing the unwanted thread length.
Pipe spacing Distance Info

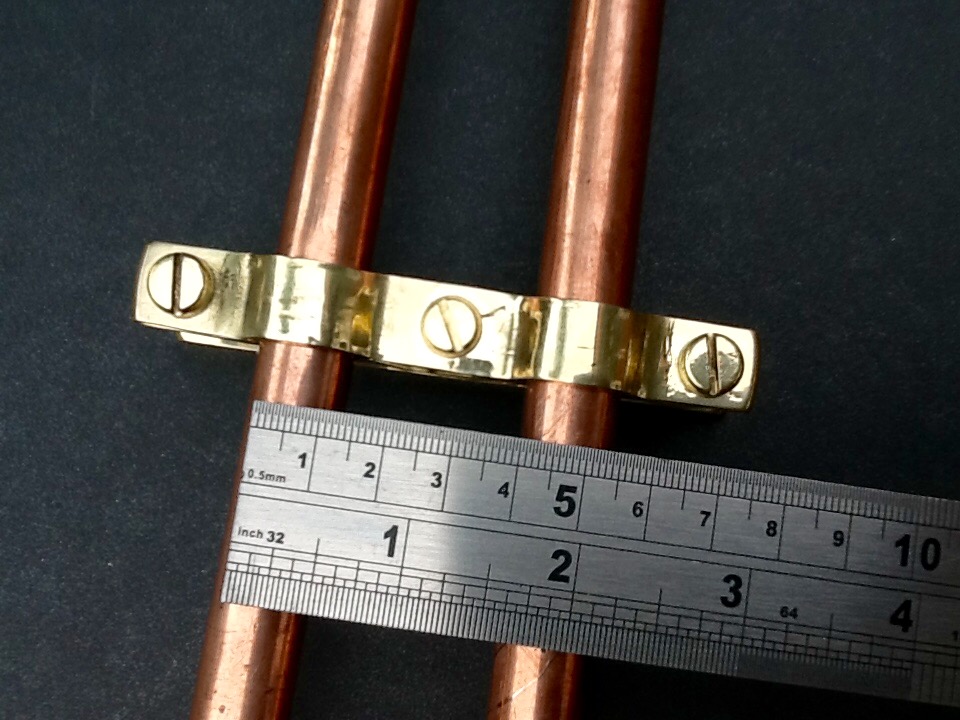

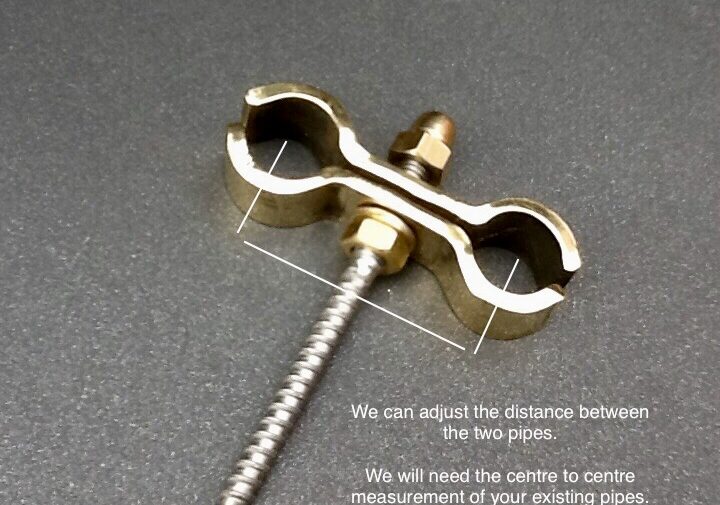

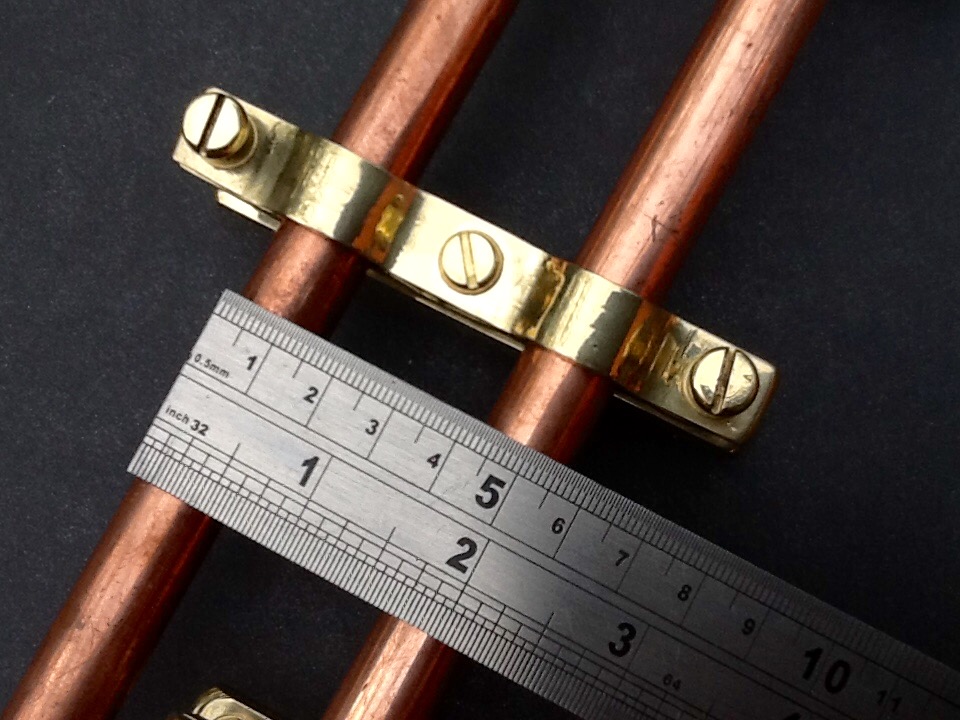

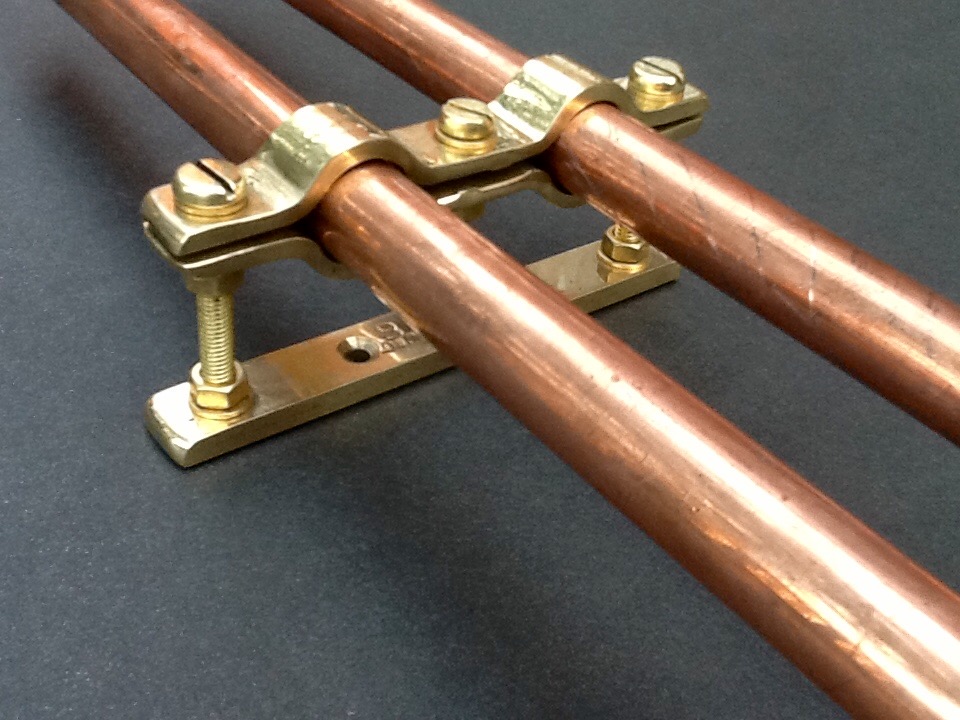

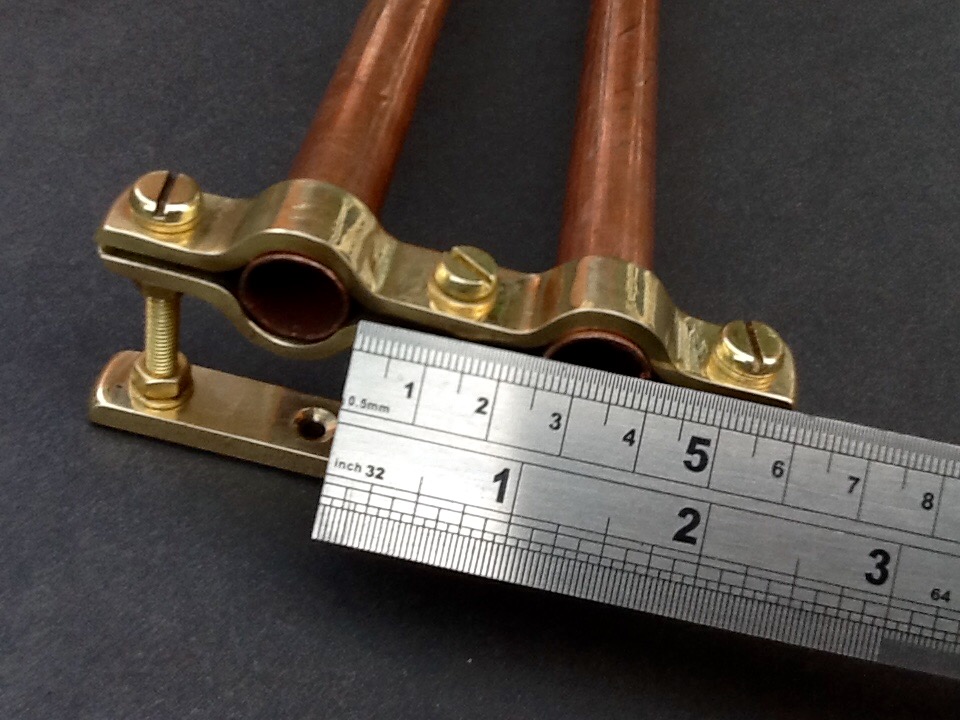

The pipes will be spaced at 42mm centre to centre once installed. If you require a different distance between the pipes please leave a note at the checkout section when you place your order and we will adjust this for you.
Brass Pipe Clamp Bracket
Brass Pipe Clamp Bracket Wall Mount 15mm Adjustable Double Ports

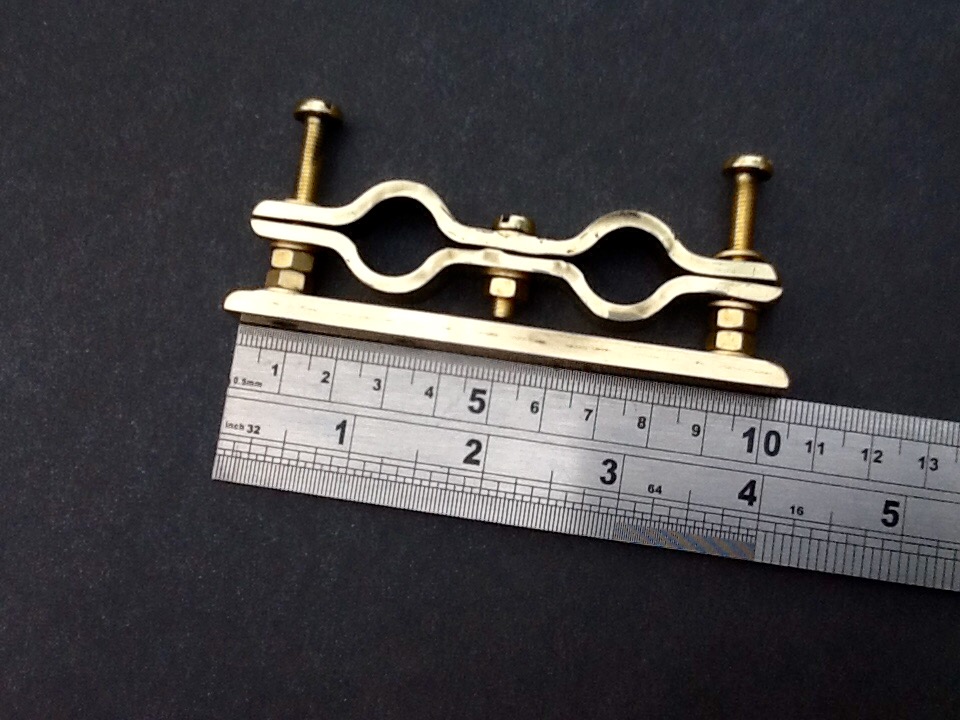

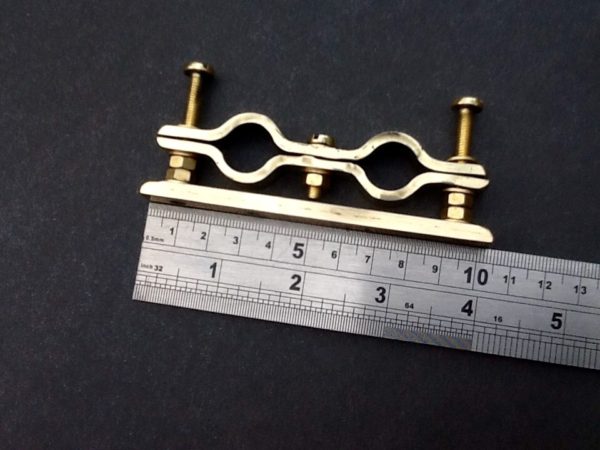

Total Length From End To End Including Backing Plate 100mm (3.3/4″)

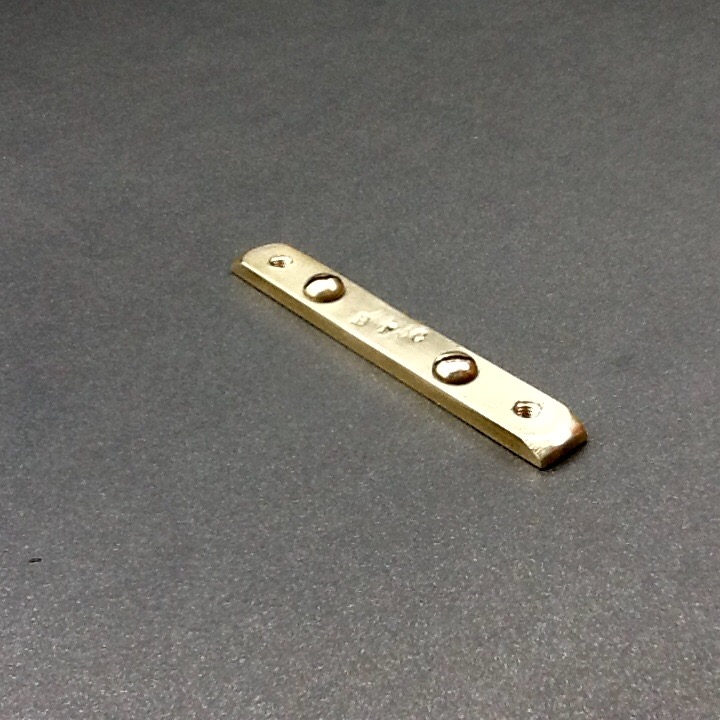

Backing Plate Thickness 5mm
Double Port Diameter 15mm Adjustable
Banding Width 12mm.
Banding Thickness 3mm.
30mm Long X (M5-5mm) Diameter Adjustment Screws
Brass Locking Nuts (5mm)
Brass Pipe Clamp Brackets BPC Engineering

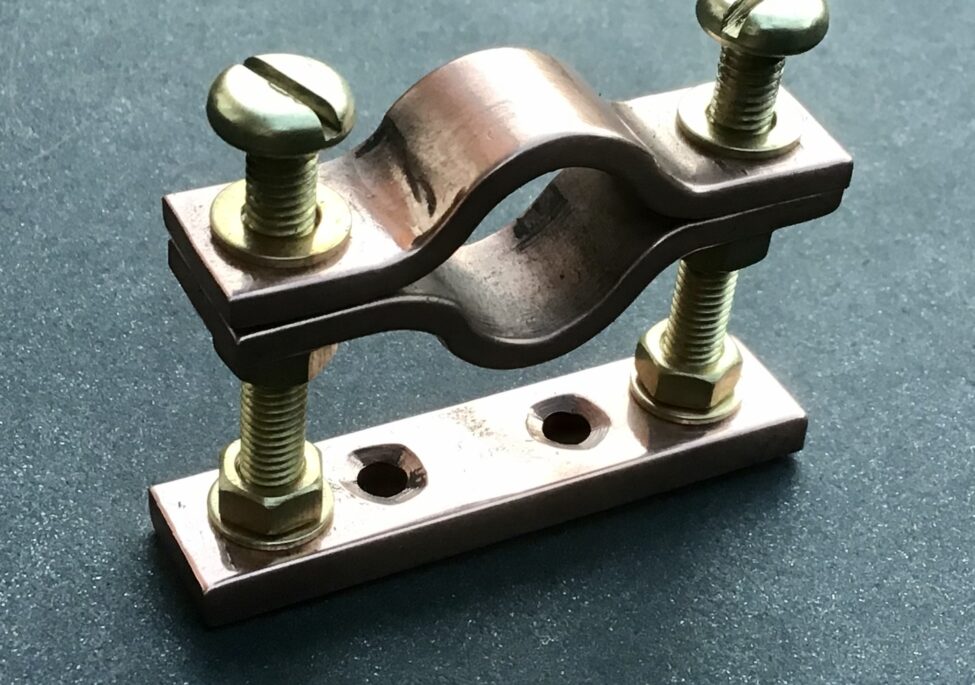

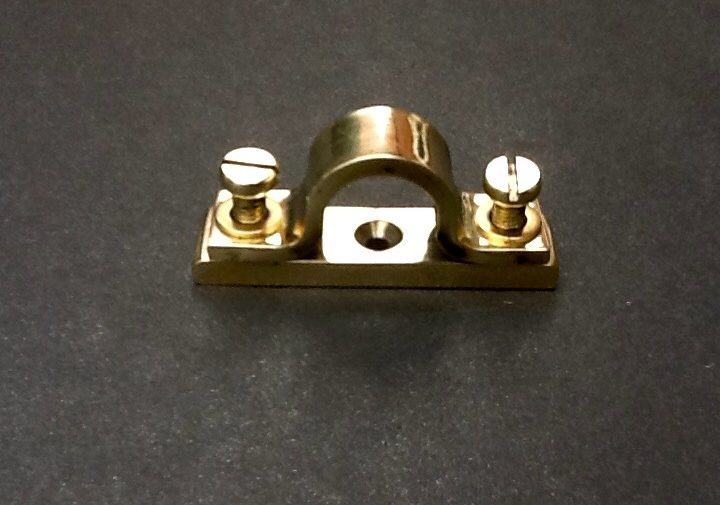

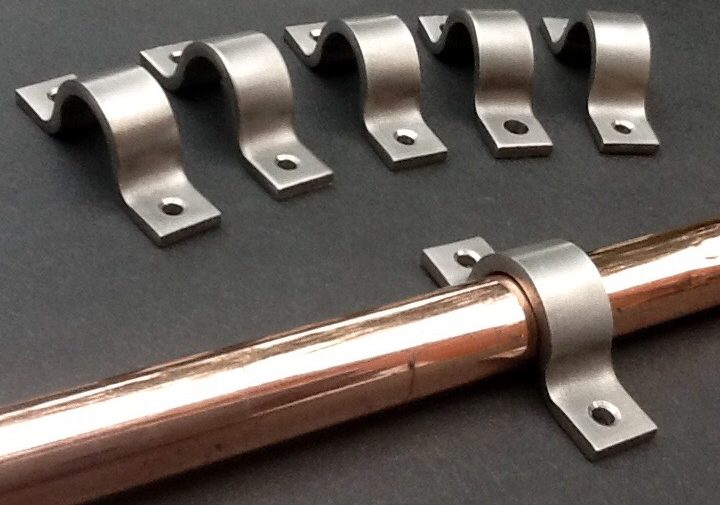

More brass pipe clamps available from our brass pipe clamps category. If you do not find what your looking for please contact us as we may be able to help you find the item. All items are sent free postage & packaging UK.
