Description

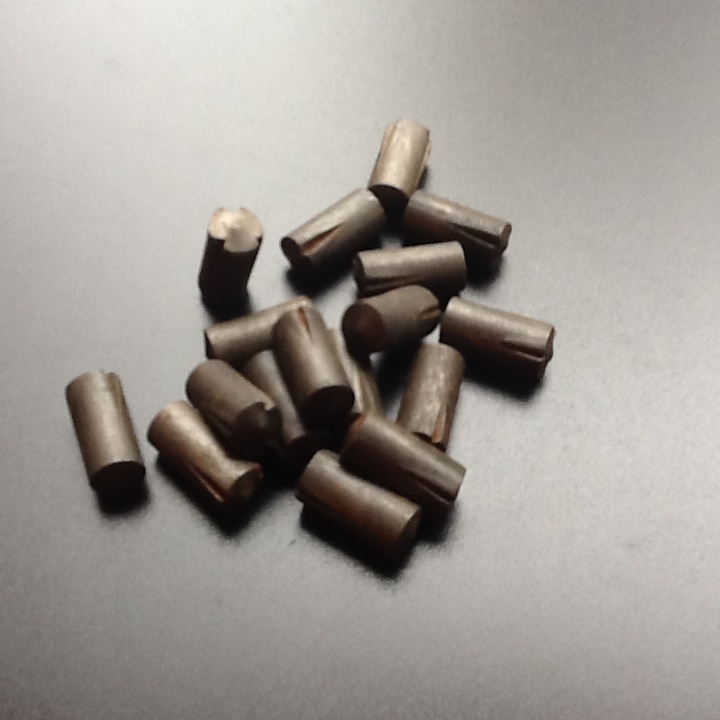

Slotted Engineers Dowel Pins Steel 6mm X 15mm
Slotted Engineers Dowel Pins Steel 6mm X 15mm these steel grooved and part grooved dowel pins are precision hardened and ground parallel pins, engineered to tight tolerance limits, for accurate locating and alignment, in drilled and reamed holes. BPC offer a complete range of hardened steel dowel pins, both plain and tapped in either metric or imperial standard measurements.
I have a huge range of dowel pins, slotted spring pins, and coiled spiral pins. In steel and stainless steel. Dowel pins available in hardened steel both grooved and part grooved and tapered I have large quantities held in stock that can be dispatched immediately.
I have listed small quantities here in this category as most of us do not need hundreds of dowel pins at anyone time, if you find that you need more than the listed quantity you can adjust the count at the quantity box.
Size:
6mm Diameter
15mm Long
Sold in packs of five £3.00
FREE POST UK
If you can’t see the item you are looking for please contact me as I update this website on a daily basis and may not have listed it yet. info@britishpipeclamps.co.uk
Usage for Steel slotted engineers dowel Pins (mills pins)are many. Solid Dowel type pins are mainly used for location or alignment purposes when bringing two mating components together. Some of these may be tapered or grooved (we have them in stock).
Other types available include steel slotted Spring pins, split pins, rolled Spring pins and part grooved pins,
Grooved pins are solid pins with three swaged grooves at 120° pitch along all or part of their length. When the pin is driven into a drilled hole of suitable diameter, the material displaced by the grooving process is forced back, to partially close up the grooves and lock the pin into place. Solid grooved pins do not need a precision reamed hole and they can have parallel grooves or tapered grooves.
Parallel grooves give the pin high resistance to vibration, but need more force to insert. BPC can supply pins that can be grooved on only part of the length, so that where the pin has to be firmly fixed in one part of an assembly, but be a clearance fit on the other, both parts can be drilled to the same diameter.
All of the pipe clamps and cable clamps brackets are handmade by myself so please allow a little longer for dispatch. If you would like a custom made clamp please contact me with the sizes you require. My pipe clamps are made to a high standard. All of the materials I use are sourced from local suppliers with British standards quality control.
Gasket Paper & Gasket Materials
I have a large stock of gasket materials on offer, NOVUS, Armstrong, GUAMOTOR, KLINGERSIL, interface and more. If you require larger size sheets than the ones listed please contact me. All of the gasket products are ideal for steam, water, oils and chemicals. From gasket packs to single sheets please check this category and see what would be best for your application.
ALL ORDERS ARE DISPATCHED WITHIN ONE WORKING DAY FREE POST UK
Slotted Engineers Dowel Pins Steel 6mm X 15mm
