Pipe Riser Support Stainless Steel 42mm Diameter Port / 25mm X 5mm

£34.85

Pipe Riser Support Stainless Steel 42mm Diameter Port / 25mm X 5mm

This pipe support bracket is ideal for marine applications, it can also withstand extreme heat.

25mm Wide Banding 5mm Thick

Heavy Duty 316 Stainless Steel



Please contact us for more information.

SKU: pipe-riser-support-stainless-steel-42mm-diameter-port-25mm-x-5mm Category: Tags: ,

Description

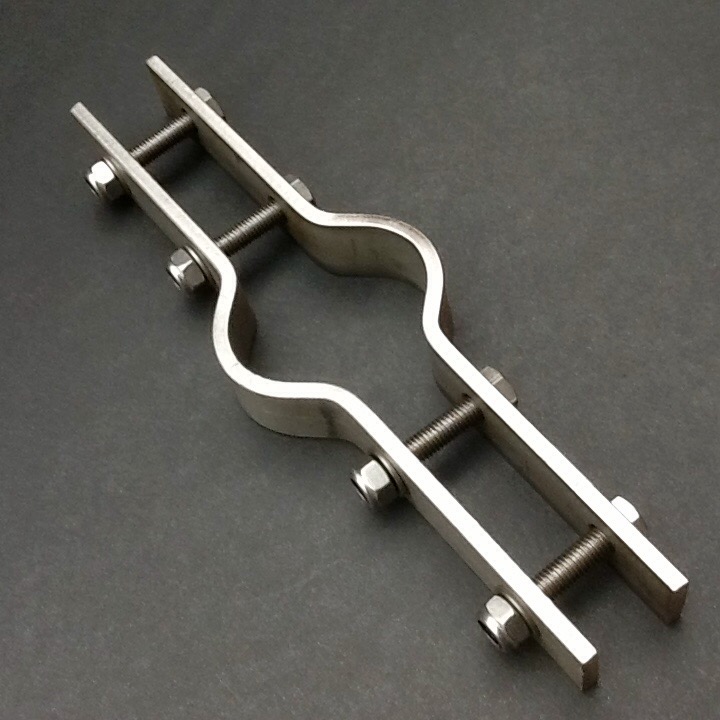

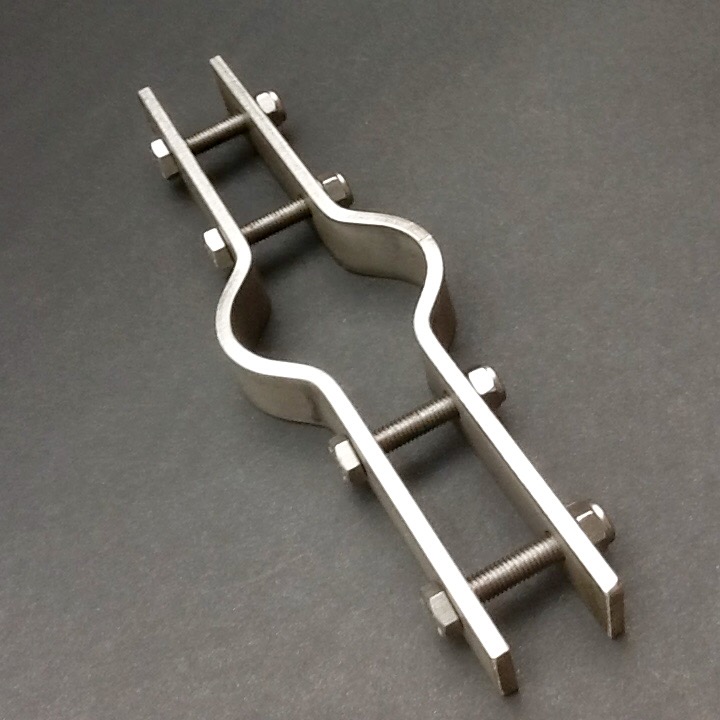

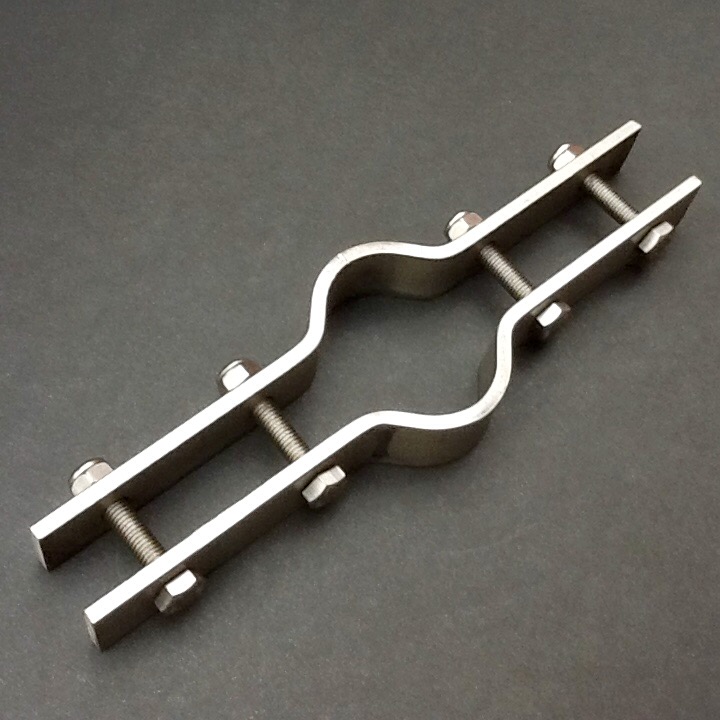

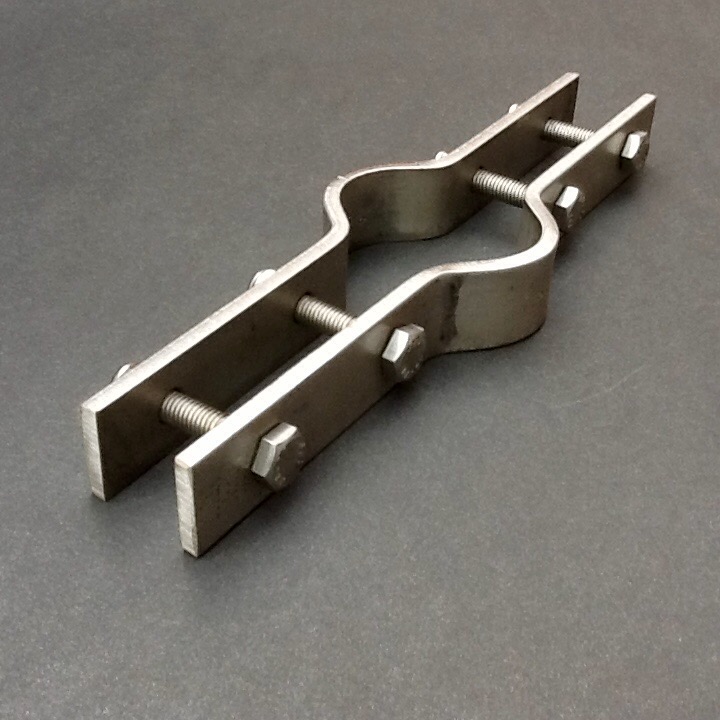

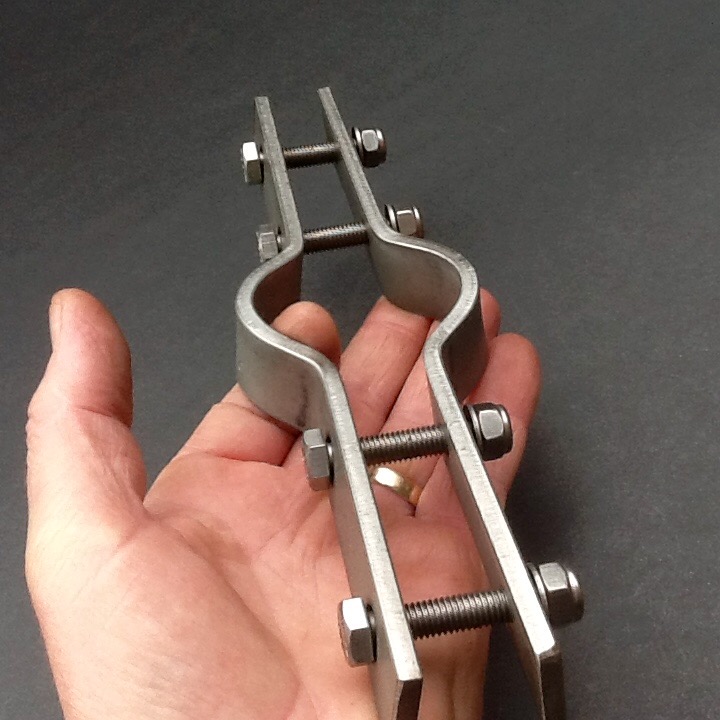

Pipe Riser Support Stainless Steel 42mm Diameter Port / 25mm X 5mm

Pipe riser support stainless steel 42mm diameter port / 25mm X 5mm. Ideal for pipes and tubes with a 42mm outside diameter.

The bracket is designed for the support or steadying of vertical pipe risers. It is made of 316 stainless steel and is designed to hold tight to the pipe, transmitting the load to the structure through the ears on each end. When possible the clamp should be placed under a coupling, hub, or lugs welded to the pipe.

Stainless steel clamping bracket for safely securing pipes. The tabs (ears) with the two bolts each side are approximately 95mm (4″) long from the end to the pipe port, (these can be made longer on request). The two M8 bolts are 55mm apart. If you need more information about this bracket or you would like it modified before you place your order. please contact us.

Made from 316L grade stainless steel, 25mm wide banding 5mm thick with (M8)-8mm stainless steel fixings. This pipe clamping support bracket is extremely strong, ideal for marine applications, it can also withstand extreme heat.

Measurements

Pipe Riser Support Stainless Steel 42mm Diameter Port / 25mm X 5mm

Totally Rust Proof

Stainless Steel 316L Grade

Length from end to end 245mm (9.3/4″) This can be made longer on request.

Port Diameter 42mm

Banding Width 25mm.

Banding Thickness 5mm.

(M8-8mm) Fixings 30mm long (Stainless Steel)

Pipe Riser Support Stainless Steel 42mm Diameter Port / 25mm X 5mm

Pipe Riser Support Bracket. BPC Engineering


More stainless steel brackets available from our stainless steel products category. If you do not find what your looking for please contact us as we may be able to help you find the item. All items are sent free postage & packaging UK.
