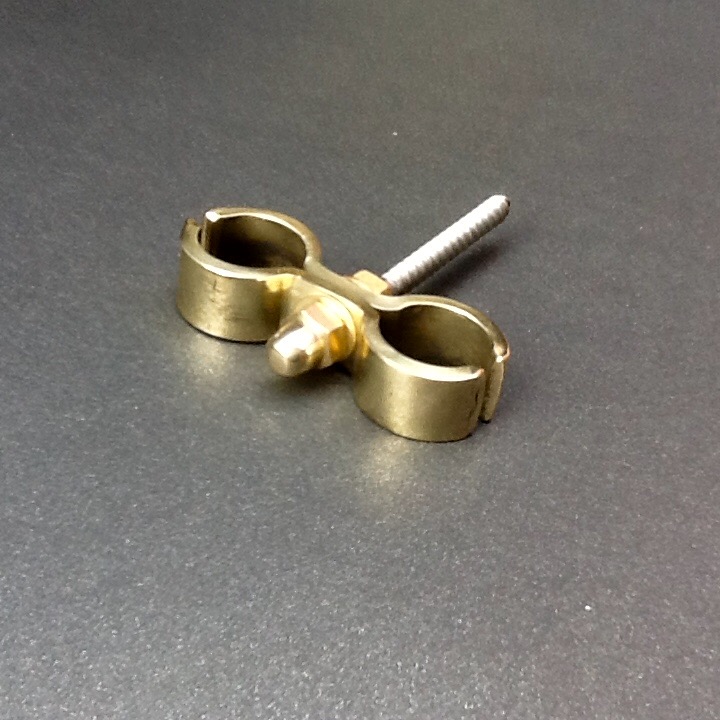

Dual Pipe Hanger Bracket Solid Brass 18mm Diameter Ports

£14.99

Beautifully Handmade Wall Mount Pipe Clamp Bracket 18mm Diameter Ports

Double Munsen Rings www.britishpipeclamps.co.uk

Pipe Brackets for 18mm Water Pipes

Each one is handmade using our old 1907 Taylor & Challen hand press. Giving that unique finish no modern machinery can recreate.

Please contact us for more information.

Description

Dual Pipe Hanger Bracket Solid Brass 18mm Diameter Ports

Dual pipe hanger bracket solid brass 18mm diameter ports. Manufactured by BPC Engineering Warwickshire. These beautiful handmade munsen ring type pipe clamping brackets will add that finishing touch to your kitchen living room or bathroom. Made from solid brass, each one is formed using our old 1907 Taylor & Challen hand press.

Adjustment  & Installation

This pipe clamp will space the pipes at 38mm centre to centre of the pipes of the pipes when installed.

How to adjust your wall mount pipe bracket.Dual Pipe Hanger Bracket Solid Brass 18mm Diameter Ports

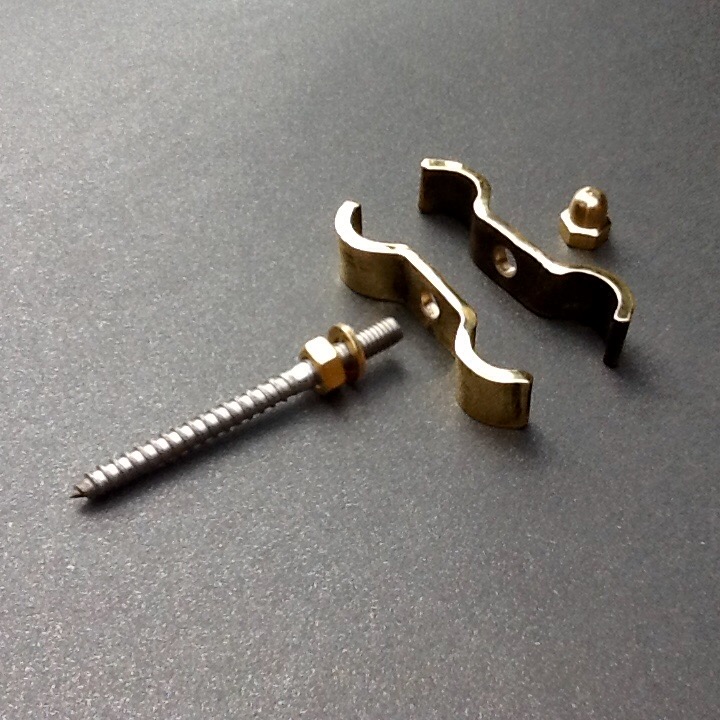

The pipe bracket has our standard double ended thread dowel, this will allow you to install the bracket to brick walls and wooden surfaces.

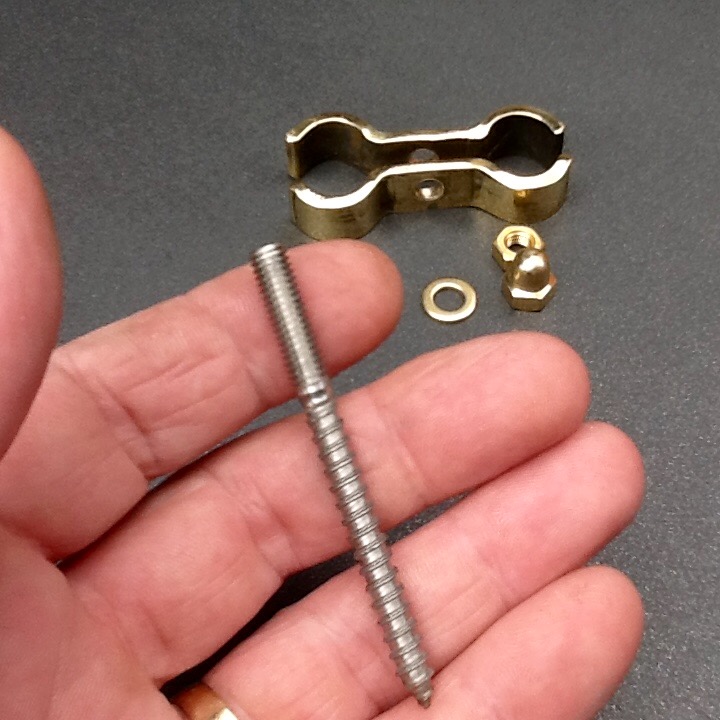

The dowel has a 6mm diameter machine fine thread at one end for the clamp and locking nuts, and a standard 6mm diameter thread at the other end for screwing into the fixing surface. The threaded dowel is 70mm (2.3/4″) total length, made from stainless steel.

The length of machine thread for the clamp and nuts is 25mm (1″). You can set the distance of the clamp by simply screwing the thread dowel into the surface.

Measurements

Dual Pipe Hanger Bracket Solid Brass 18mm Diameter Ports

Port Diameter 18mm

Banding Width 12mm.

Banding Thickness 3mm.

6mm Diameter Fixing Screw Dowel.

Brass Locking Nuts (6mm)

This pipe clamp will space the pipes at 38mm centre to centre of the pipes when installed.

Dual Pipe Hanger Bracket Solid Brass 18mm Diameter Ports

Brass Pipe Bracket For 18mm Diameter Pipes


More brass pipe clamps available from our brass pipe clamps category. If you do not find what your looking for please contact us as we may be able to help you find the item. All items are sent free postage & packaging UK.


You may also like our solid brass wall mounting 18mm pipe brackets with the brass backing plate. This bracket will also allow you adjust the pipe distance using the central fixing screw.



18mm pipe Brackets solid brass

Bespoke Pipe Brackets Solid Brass
