22mm-22mm Pole Bracket For Marine Solar Panel Installation

£16.00

Stainless Steel Brackets For The Installation Of Marine Solar Panel Support Poles

Quick and easy to install. NO drilling necessary



22mm-22mm Pole Bracket For Marine Solar Panel Installation



£16.00 each Free Post UK only



SKU: 22mm-22mm-pole-bracket-for-marine-solar-panel-installation Category: Tags: ,

Description

22mm-22mm Pole Bracket For Marine Solar Panel Installation Stainless Steel

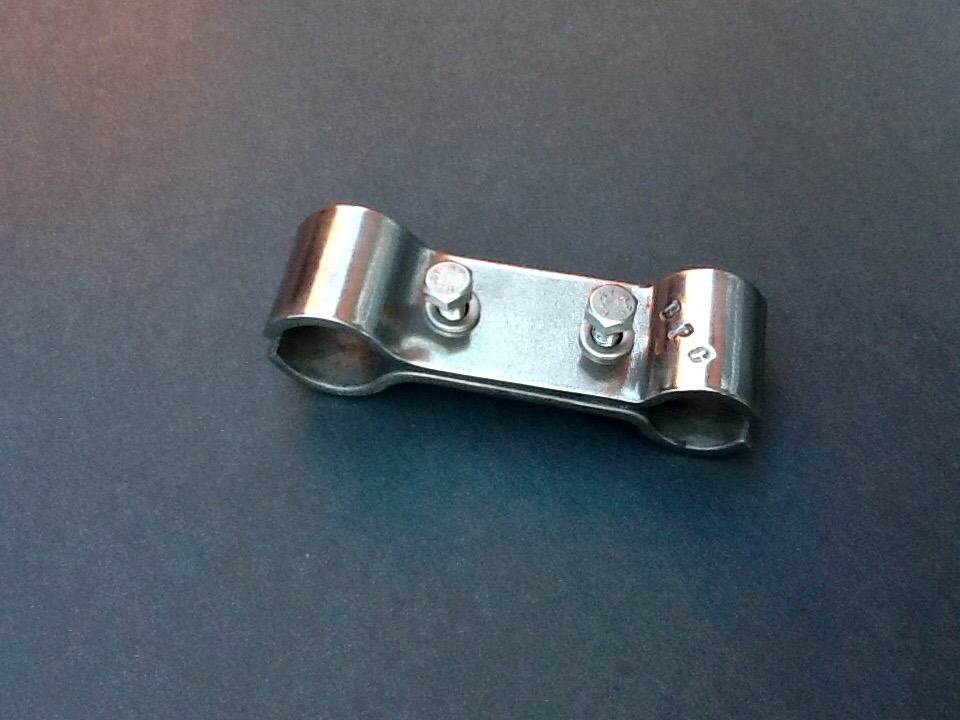

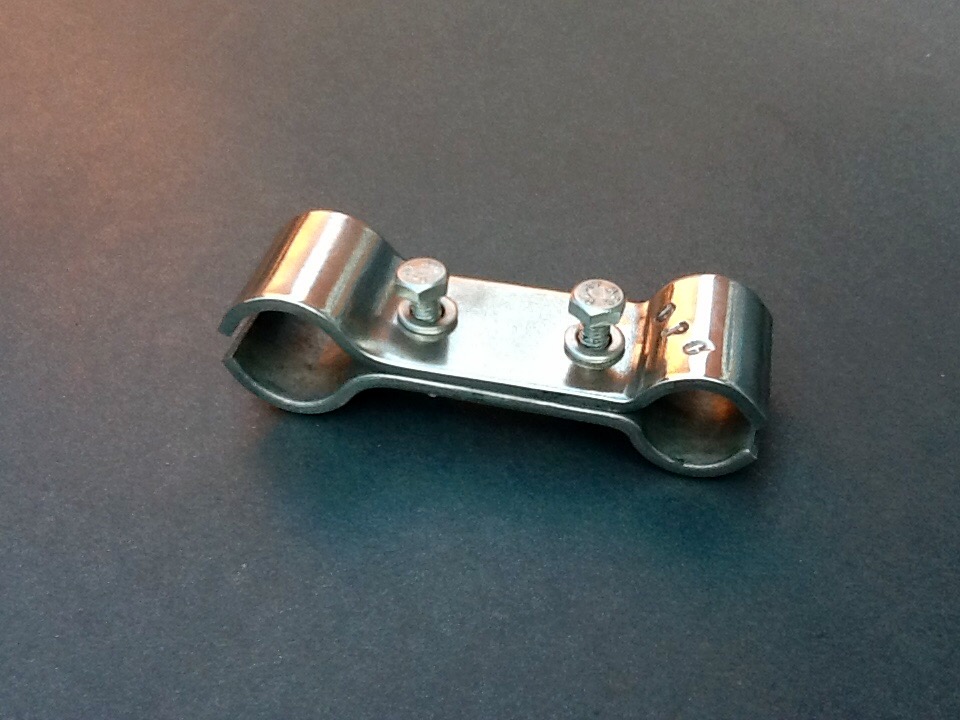

22mm-22mm pole bracket with stainless steel fixings. This bracket will secure tightly to 22mm and 22mm diameter poles. The bracket will allow you to install the two poles securely side by side to each other.

Pole Distancing Once Installed

The distance between the poles once installed in this bracket will be approximately 3″ (75mm) centre to centre of of the poles. This will give you a 2″ (50mm) clear space between the two poles.

Bespoke Brackets

We can make these brackets to your specifications. We can space the poles at a required distance set by yourself. Please contact Heath Verrall at BPC Engineering Warwickshire 01789750000 to chat about the type of brackets you have in mind for your installation.

Bracket Installation Info

The solar panel support poles can be attached to the stern rail(s) using our brackets. No drilling or machining is required, simply tighten the two nuts and bolts and that’s it.

These brackets can also be used to support marine wind turbine poles

High Quality Finish

All of our combination clamping brackets are polished finished with stainless steel Fixings. They are made from 3mm thick 316L marine grade stainless steel.



22mm-22mm Pole Bracket For Marine Solar Panel Installation

316 stainless steel

Measurements 22mm-22mm Pole Bracket For Marine Solar Panel Installation

Polished 316 Stainless Steel

TOTALLY RUST PROOF

This bracket will secure 22mm and 22mm diameter poles together

Pole distance from each other once installed 75mm (3″) centre to centre.

Clear space between poles will be 50mm (2″)

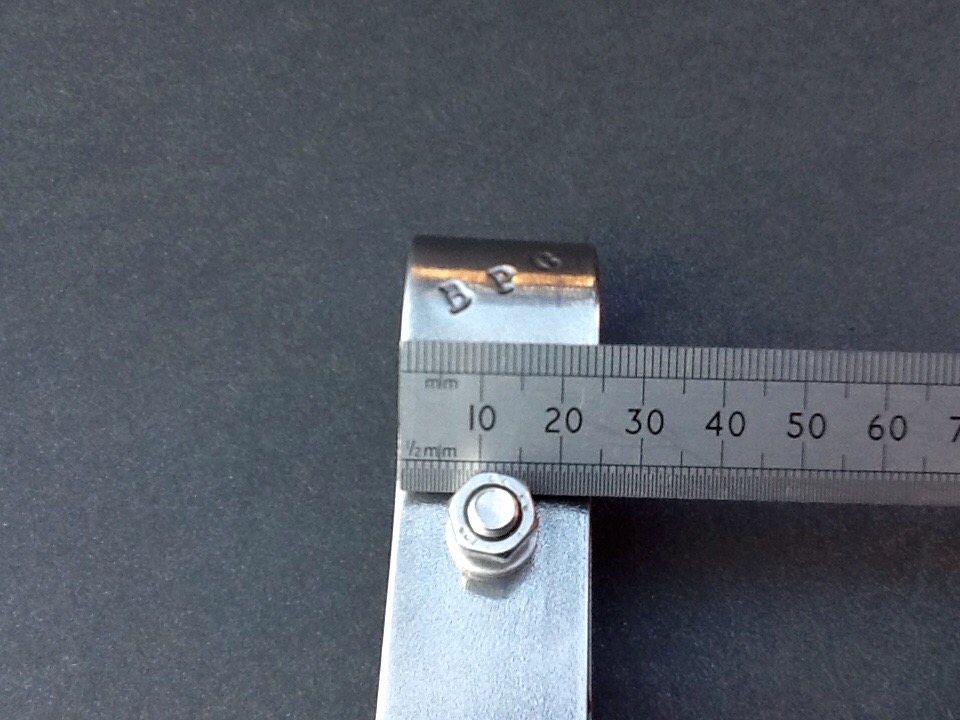

Banding Width 30mm

Band Thickness 3mm

6mm (M6) nuts & bolts

View more of our marine solar panel pole clamping brackets


Cold Pressed & Non-Welded Product

The use of non-welded pipe clamps are favourable due to their reliability and strength. Welded components can malfunction under certain conditions. NO welding is involved in the manufacturing of any of our products.
The double size combination clamps we manufacture have been cold pressed. This gives the advantage over hot pressed components, as the metal does not lose its strength when cold pressed. These clamps are extremely strong and with the added bonus of being 316L stainless steel (corrosion resistant) makes these pipe clamps the perfect choice for your installation.
